Plot fMRI Design Matrix — plot_design

This function creates a visualization of an fMRI design matrix, showing the temporal evolution of regressors over time. It can handle various input formats and provides options to customize the visualization.

Usage

plot_design_fmri(
  design_matrix,
  TRs = 100,
  events = NULL,
  remove_nuisance = TRUE,
  subject = 1,
  legend_pos = "bottomleft",
  ...
)

Arguments

design_matrix: A design matrix for fMRI analysis. Can be a data frame, matrix, list of matrices, or an object of class 'emc.design'.
TRs: The number of time points (TRs) to plot. Default is 100.
events: A character vector specifying which regressors to plot. If NULL, all non-nuisance regressors will be plotted.
remove_nuisance: Logical indicating whether to remove nuisance regressors (drift terms, polynomial terms, derivatives) from the plot. Default is TRUE.
subject: The subject number to plot. Only applies for list of design matrices. Default is 1.
legend_pos: Position of the legend. Default is "bottomleft".
...: Additional graphical parameters passed to matplot and legend.

Value

A plot showing the design matrix regressors over time.

Examples

# Example time series
ts <- data.frame(
  subjects = rep(1, 100),
  run      = rep(1, 100),
  time     = seq(0, 99),
  ROI      = rnorm(100)
)
# Create a simple events data frame
events <- data.frame(
  subjects = rep(1, 10),
  run = rep(1, 10),
  onset = seq(0, 90, by = 10),
  condition = rep(c("A", "B"), 5),
  rt = runif(10, 0.5, 1.5),
  accuracy = sample(0:1, 10, replace = TRUE)
)
# Reshape with custom duration for each event_type
reshaped <- reshape_events(events,
                           event_types = c("condition", "accuracy", "rt"),
                           duration = list(condition = 0.5,
                                          accuracy = 0.2,
                                          rt = function(x) x$rt))
design_matrices <-  convolve_design_matrix(
                    timeseries = ts,
                    events = reshaped,
                    covariates = c('accuracy', 'rt'),
                    factors = list(cond = c("condition_A", "condition_B")),
                    contrasts = list(cond = matrix(c(-1, 1))))
#>     event_type subjects run onset modulation  duration regressor
#> 1  condition_A        1   1     0 -1.0000000 0.5000000     cond1
#> 11    accuracy        1   1     0  1.0000000 0.2000000  accuracy
#> 21          rt        1   1     0  1.1012426 1.1012426        rt
#> 2  condition_B        1   1    10  1.0000000 0.5000000     cond1
#> 12    accuracy        1   1    10  0.0000000 0.2000000  accuracy
#> 22          rt        1   1    10  0.9598868 0.9598868        rt
#> 23          rt        1   1    20  1.3605504 1.3605504        rt
#> Filtering out high_pass noise, make sure you also use high_pass_filter(<timeseries>)

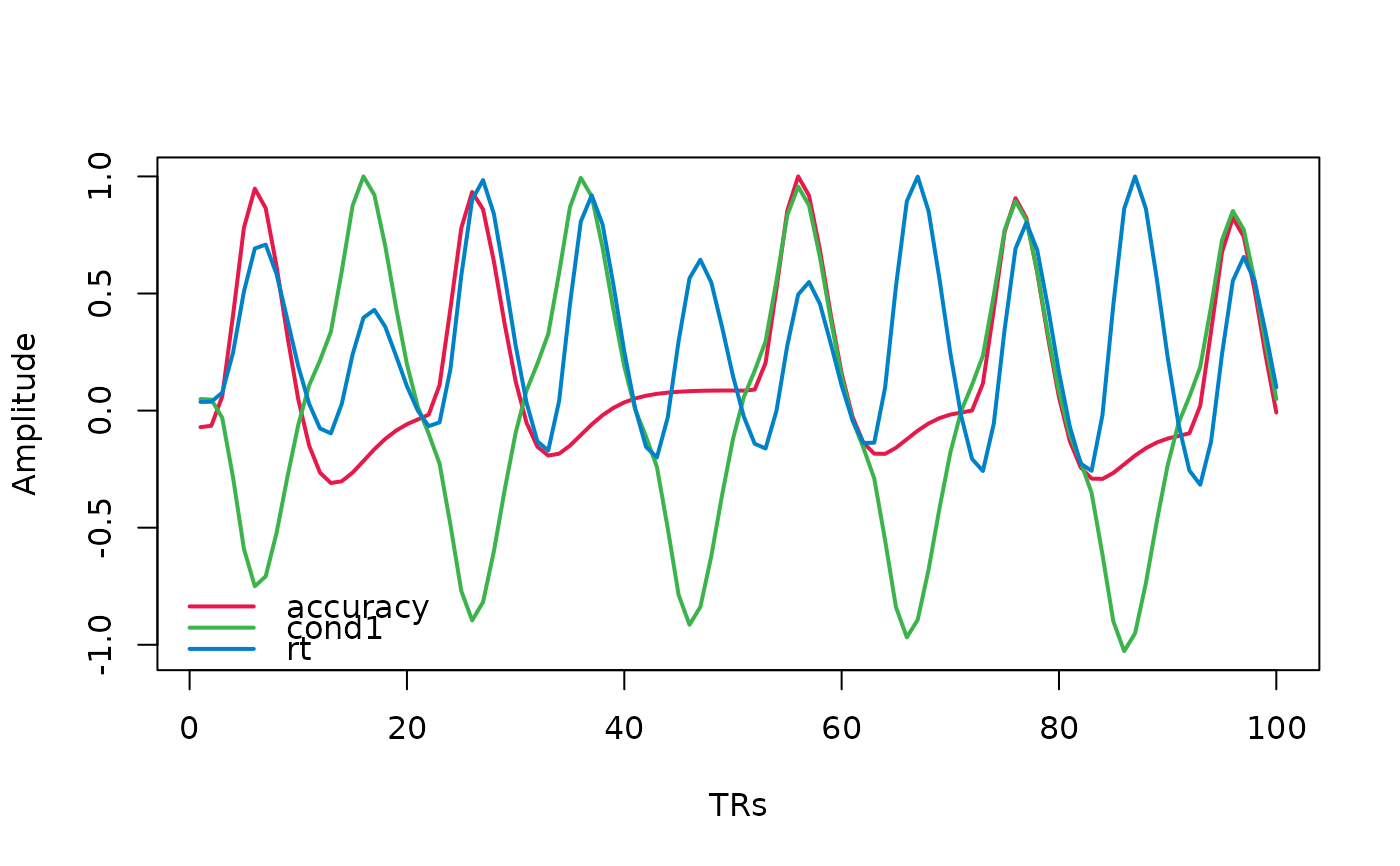

# Plot the design matrix
plot_design_fmri(design_matrices)
